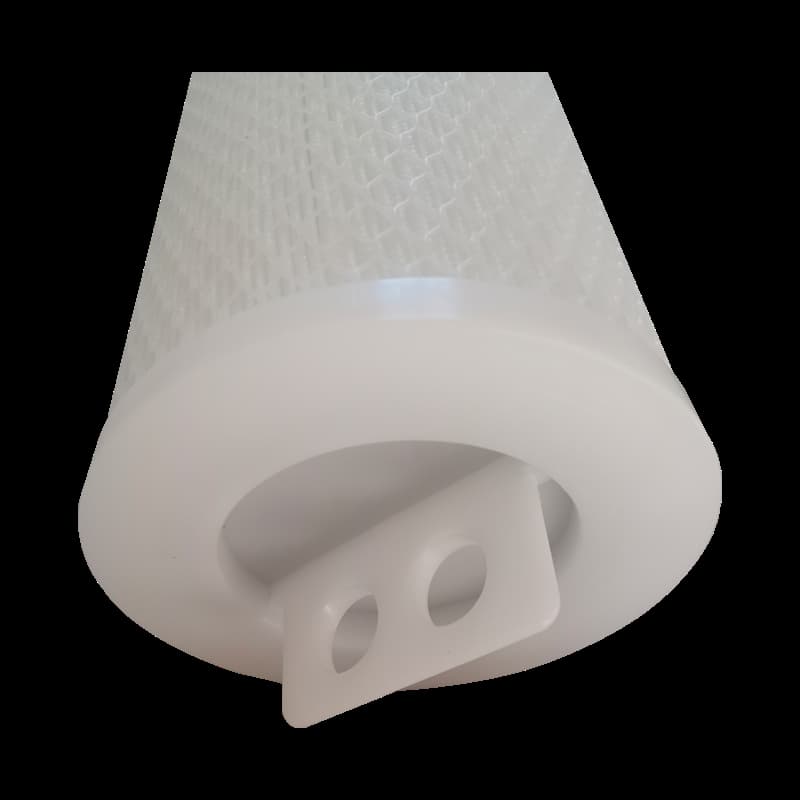

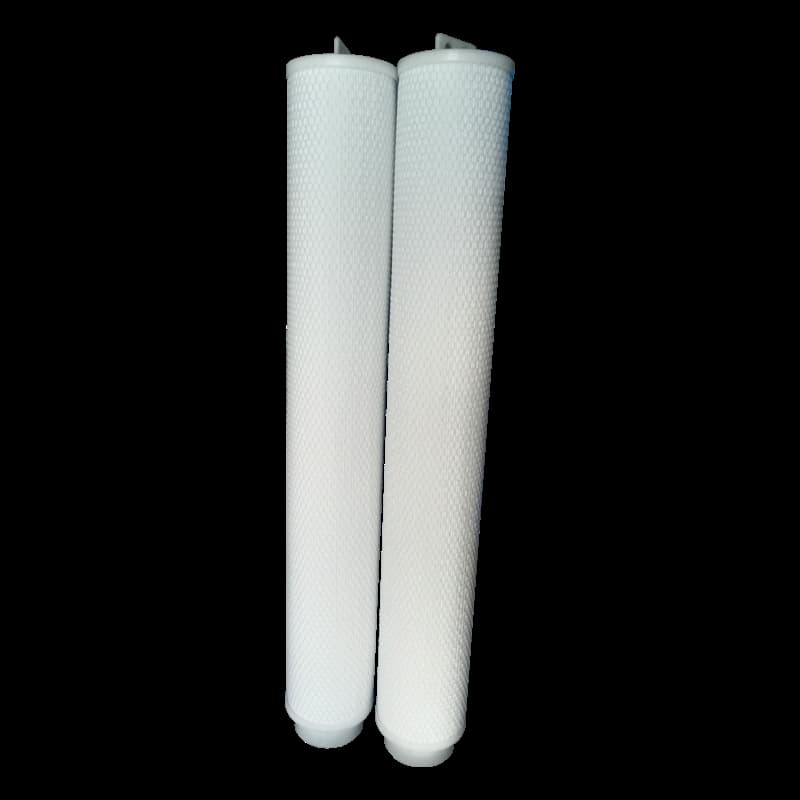

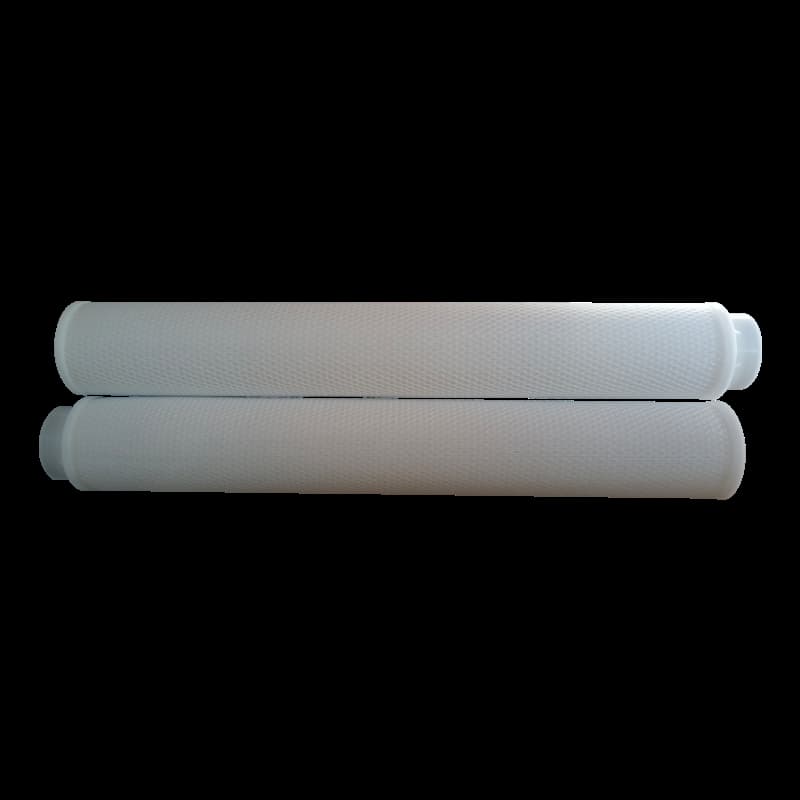

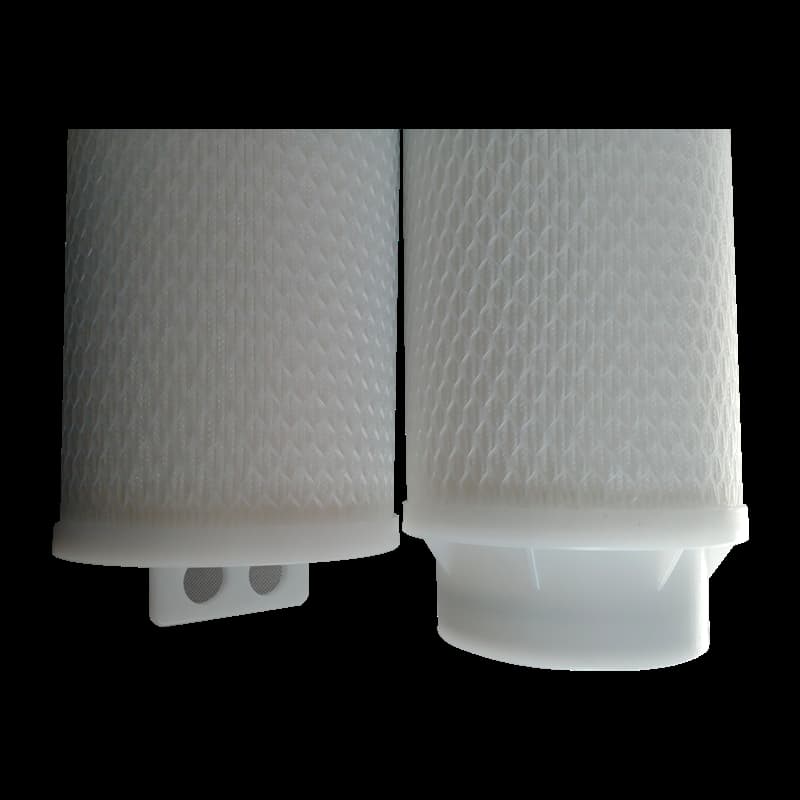

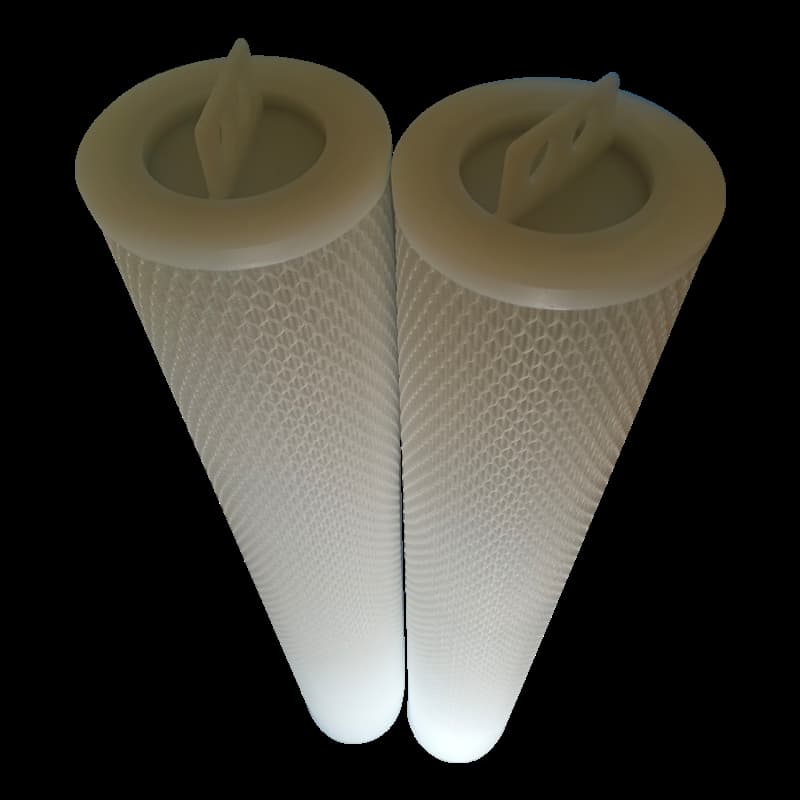

This high flow filter cartridge is designed as a replacement for Parker filters. It adopts a large diameter structure combined with high-performance polypropylene filtration media.

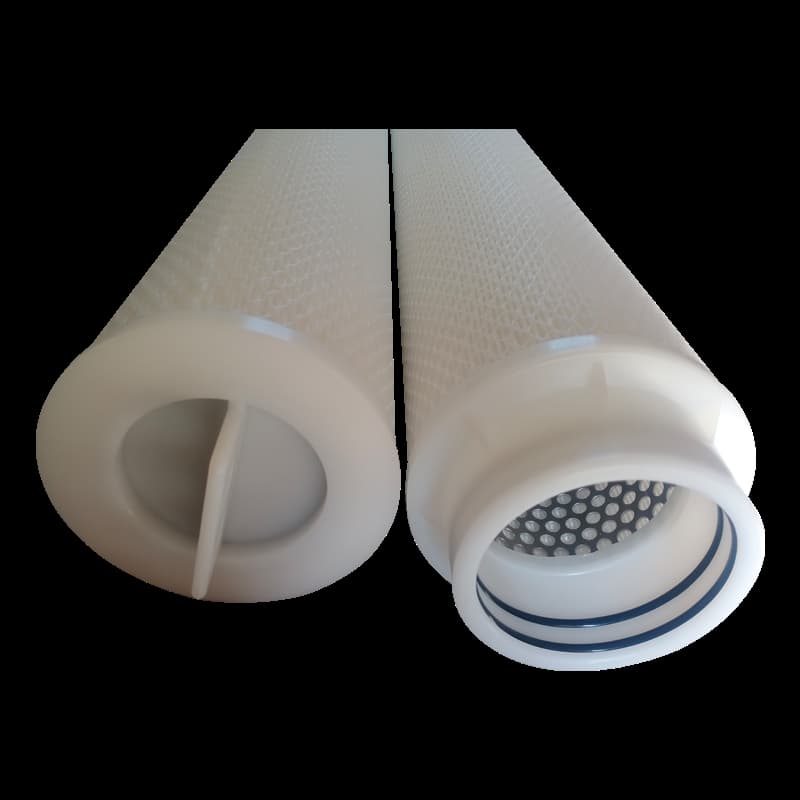

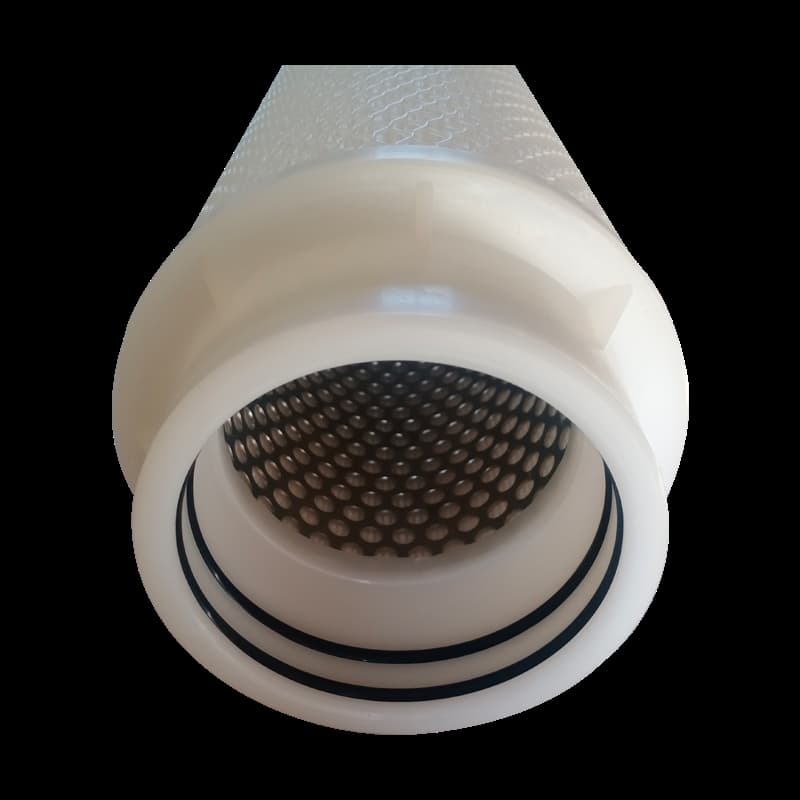

The cartridge features a stainless steel inner core that enhances structural strength and pressure resistance. The outside-to-inside filtration design ensures efficient particle retention while maintaining a high flow rate and stable performance.

Key Features

• Stainless steel inner core for enhanced strength
• High flow capacity with large filtration area
• Low pressure drop and long service life
• Stable performance under high pressure conditions
• Reduced cartridge replacement frequency
• Reliable sealing design for industrial applications

Technical Specifications

• Outer Diameter: 150 mm
• Length Options: 10″, 20″, 30″, 40″
• Filtration Direction: Outside to inside
• Filter Media: Polypropylene (PP)
• Inner Core: Stainless Steel
• End Caps: Polypropylene (PP)
• Seal Material: EPDM, NBR, Silicone, Viton
• Maximum Operating Temperature: 80°C
• Maximum Differential Pressure: 3.0 bar @ 20°C

Applications

• Electronics industry
• Chemical industry
• RO system pre-filtration
• Power plants
• Steel plants
• Petrochemical industry
