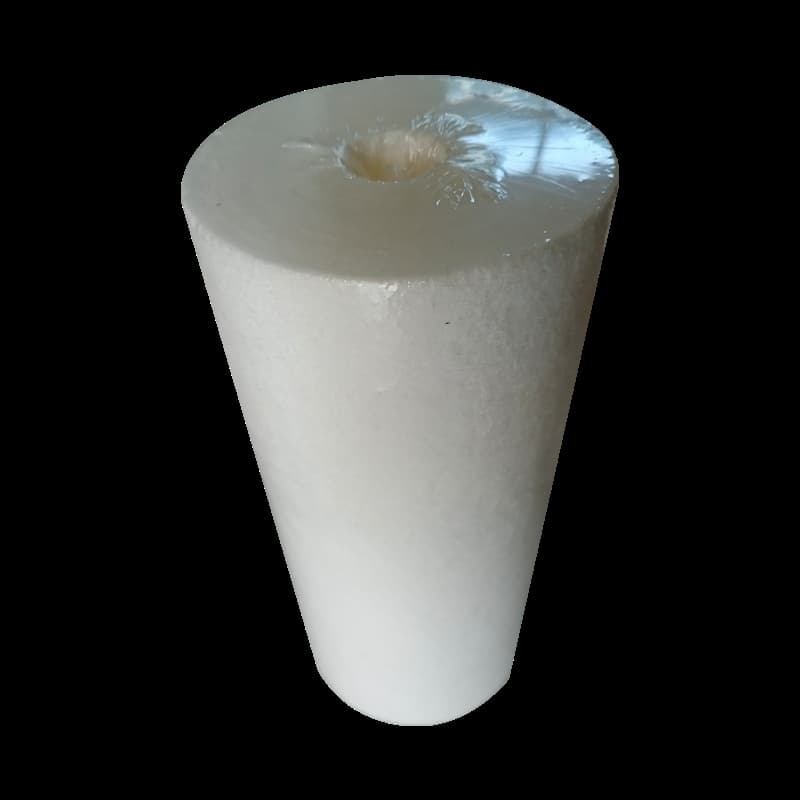

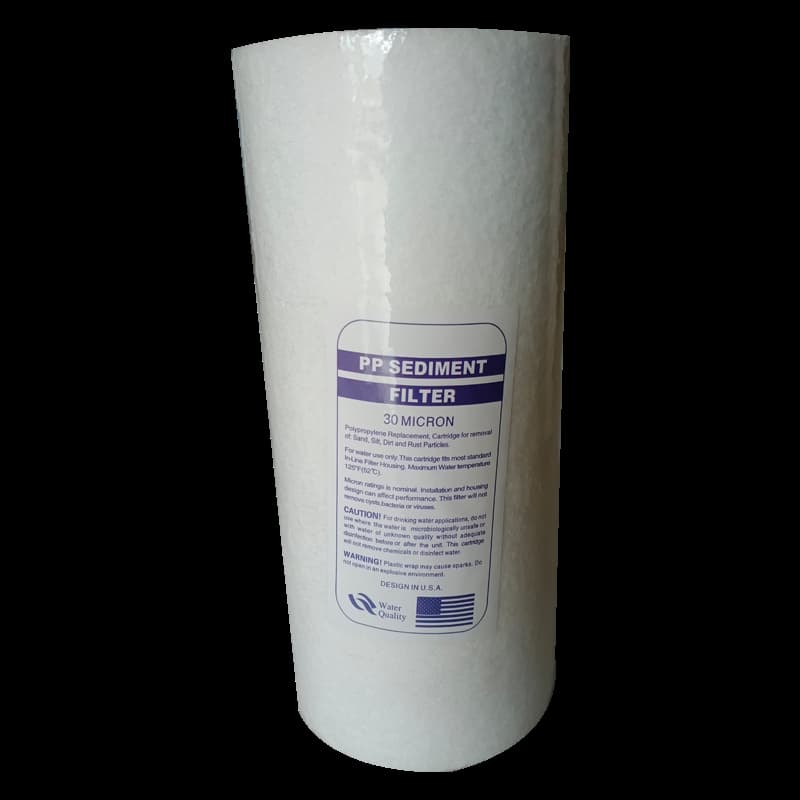

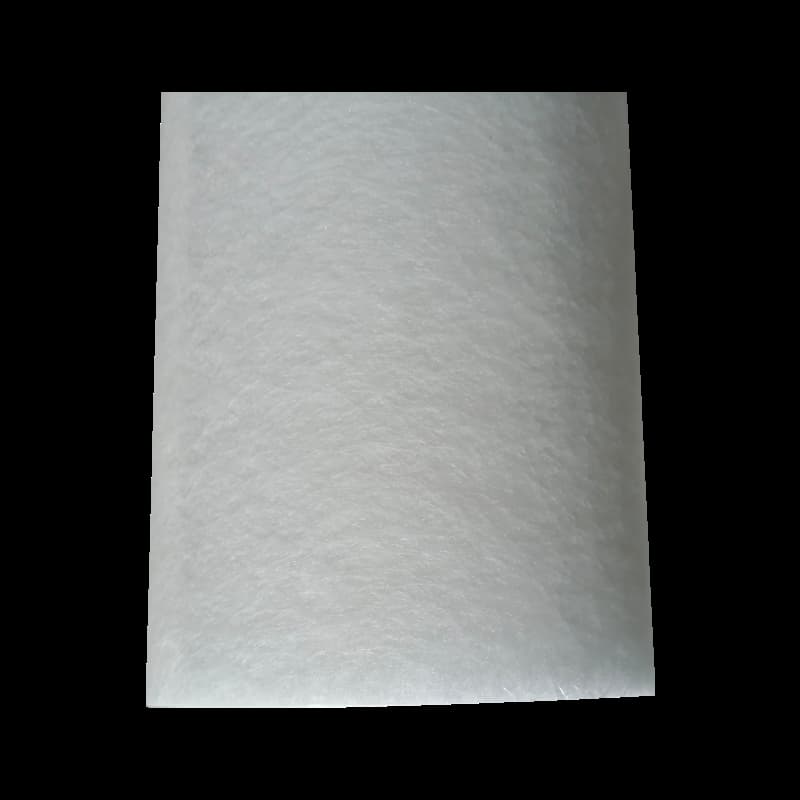

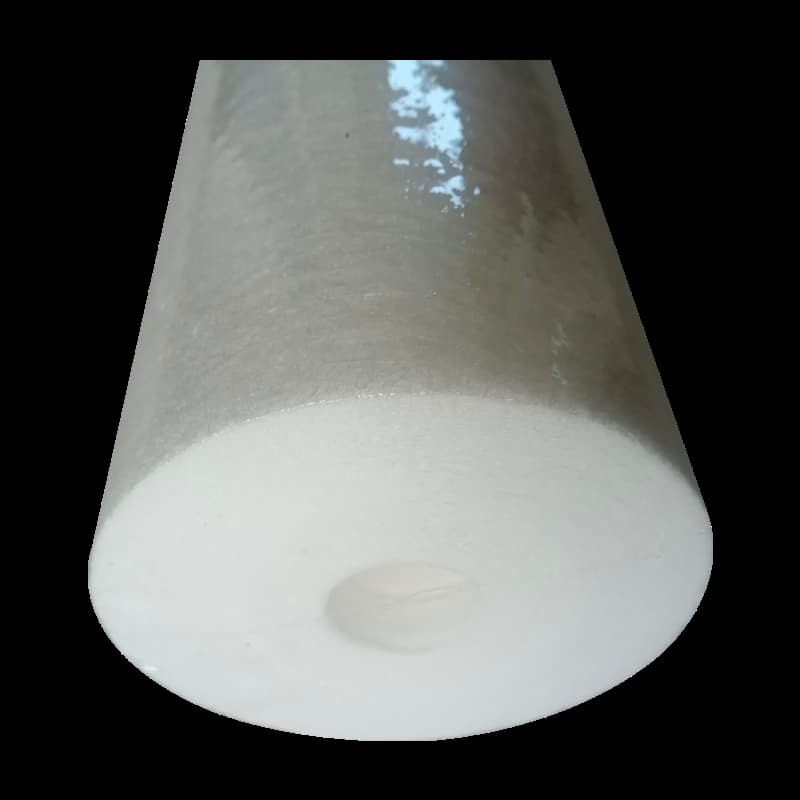

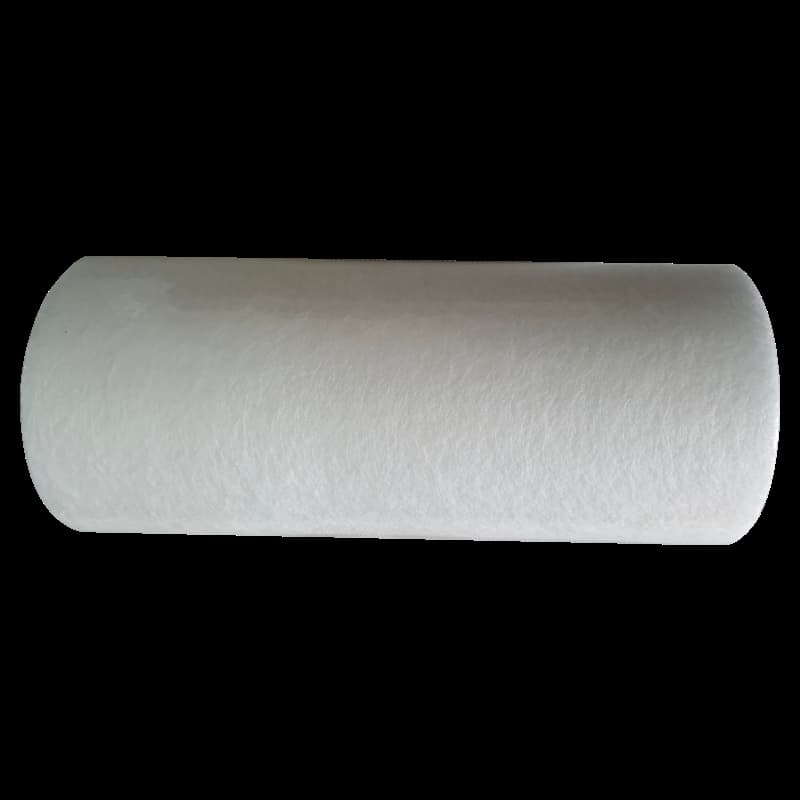

This melt blown filter cartridge is made of 100% polypropylene (PP) using thermal bonding technology. It features a gradient pore structure from outer to inner layers, providing efficient filtration performance and high dirt holding capacity.

The cartridge is designed for stable flow rate and low pressure drop, making it ideal for removing suspended solids, particles, and impurities from liquids in various industrial and water treatment applications.

Key Features

• 100% polypropylene construction without adhesives
• Gradient pore structure for higher filtration efficiency
• High dirt holding capacity and long service life
• Low pressure drop and stable flow performance
• Resistant to acids, alkalis, and chemical corrosion
• Suitable for food-grade and industrial applications

Technical Specifications

• Filter Media: 100% Polypropylene (PP)
• Length Options: 5″, 10″, 20″, 30″, 40″
• Outer Diameter Options: 30 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 115 mm
• Inner Diameter Options: 10 mm, 13 mm, 15 mm, 20 mm, 26 mm, 28 mm, 30 mm, 34 mm, 53 mm, 90 mm, 110 mm
• Filtration Rating: 0.5 μm, 1 μm, 5 μm, 10 μm, 25 μm, 50 μm, 75 μm, 100 μm
• Maximum Operating Pressure: ≤ 0.5 MPa
• Maximum Operating Temperature: ≤ 80°C
• End Type: DOE (Double Open End) / Single Open End
• Core Options: Coreless / PP Core / Stainless Steel Core

Applications

• Electronics industry (pure water and ultrapure water pre-filtration)
• Petrochemical industry (solvents, acids, alkalis, oils)
• Pharmaceutical industry (process water and liquid filtration)
• Food and beverage industry (wine, beverages, drinking water filtration)
