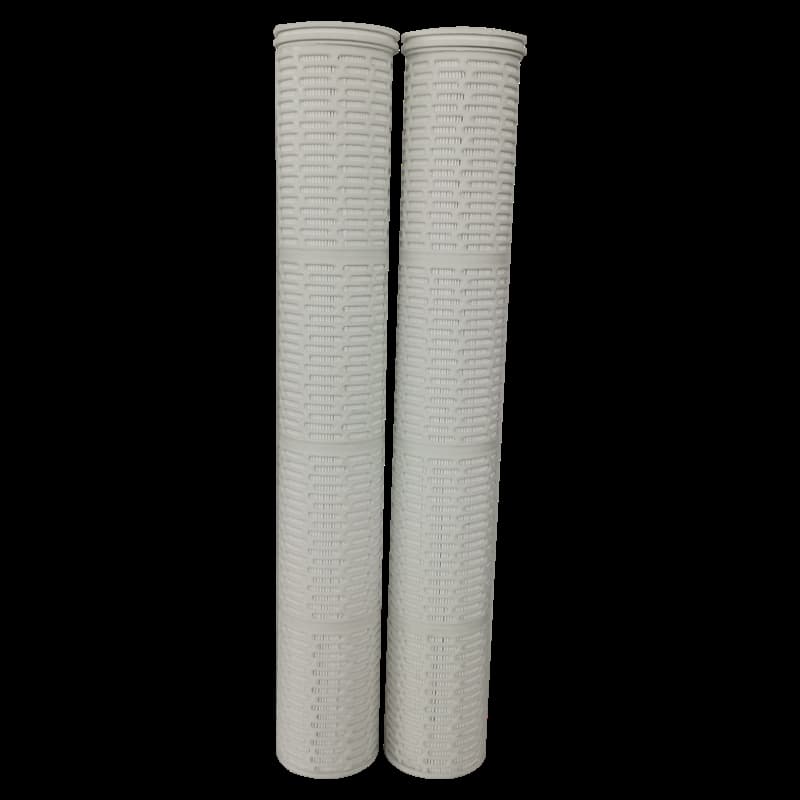

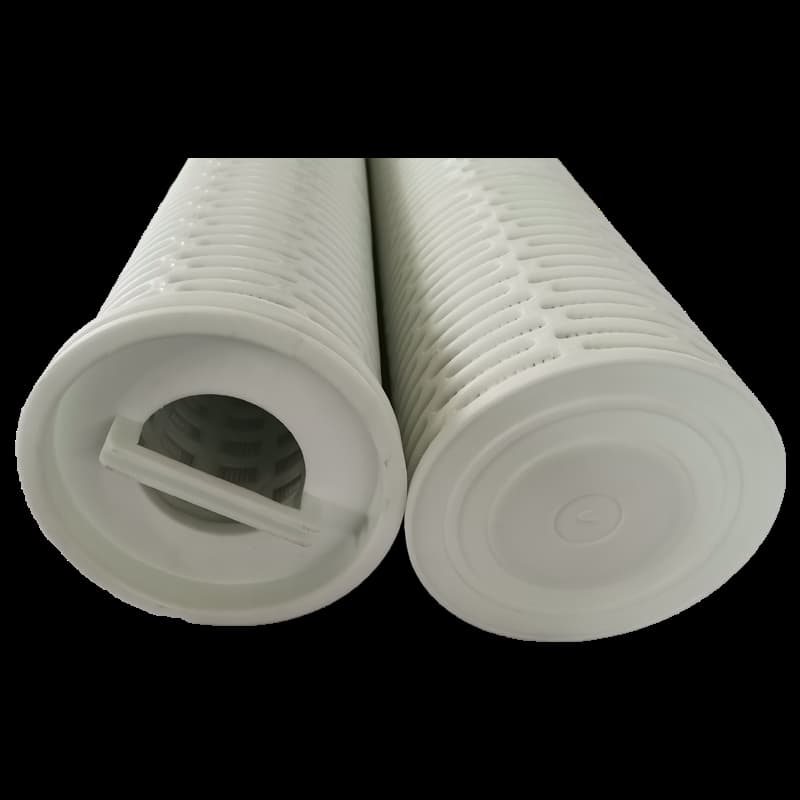

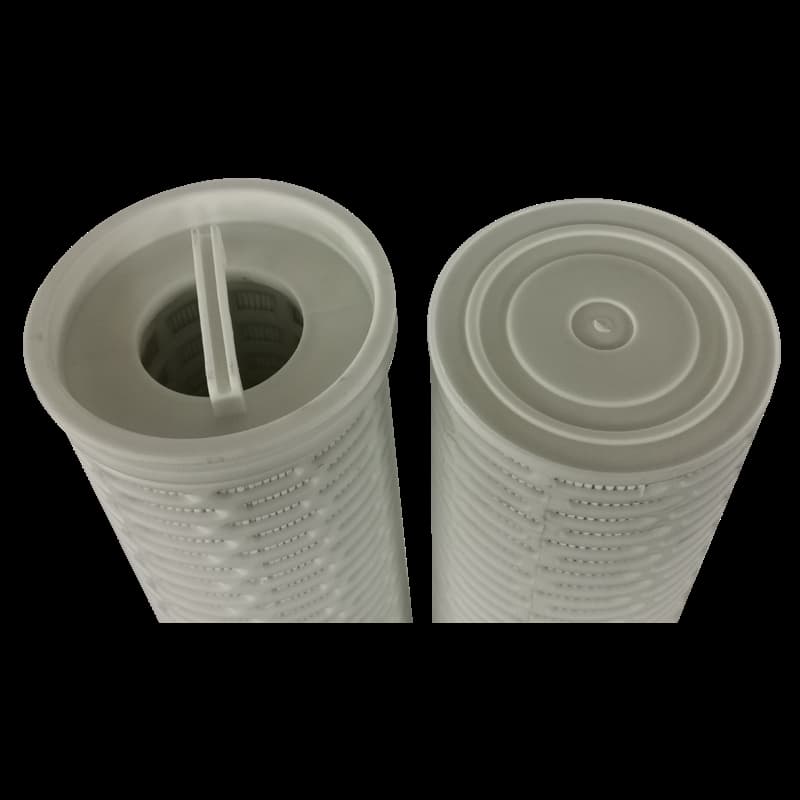

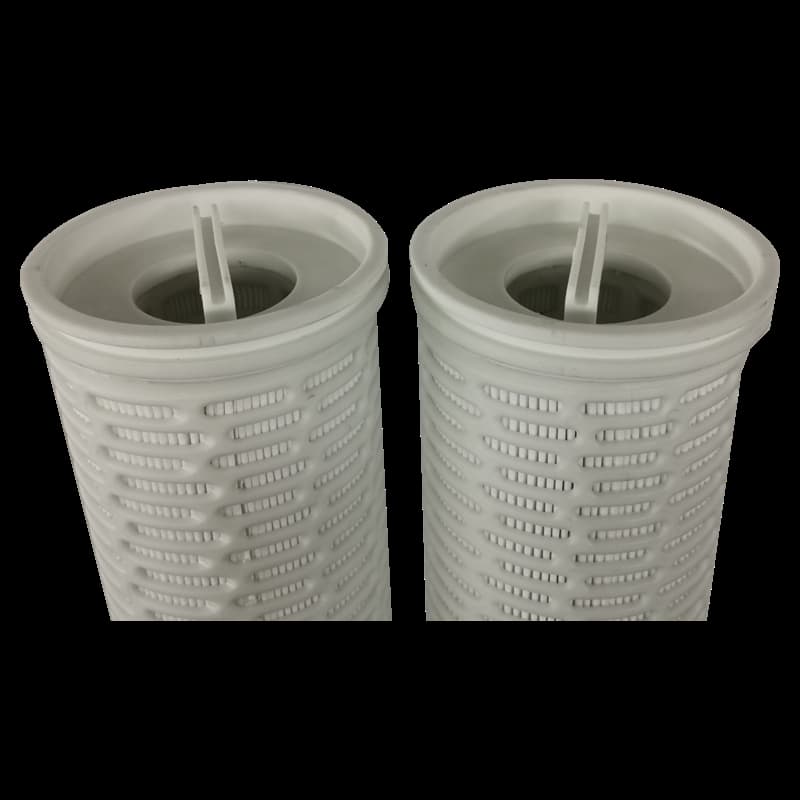

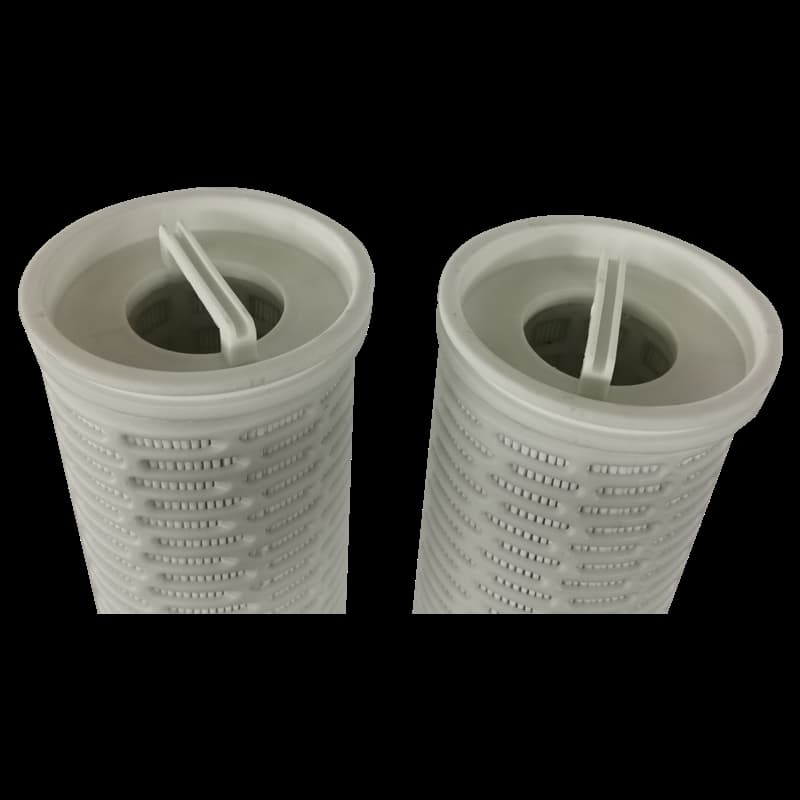

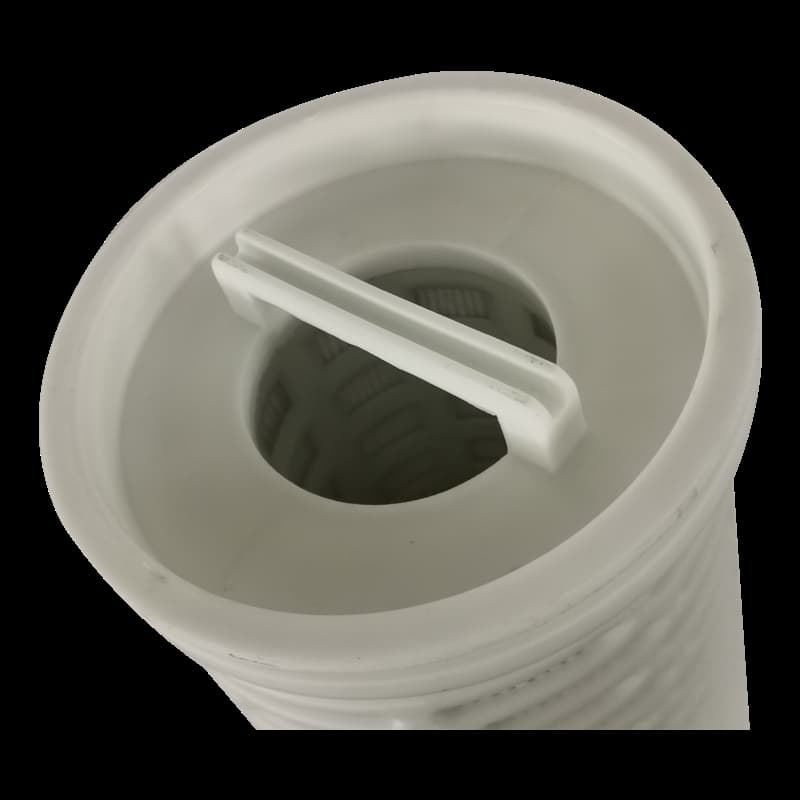

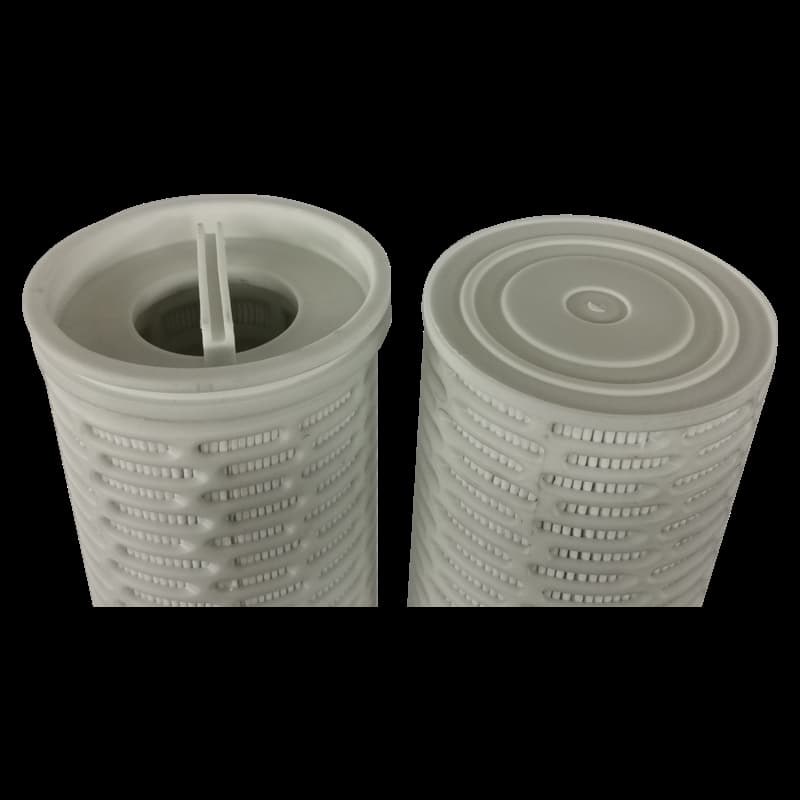

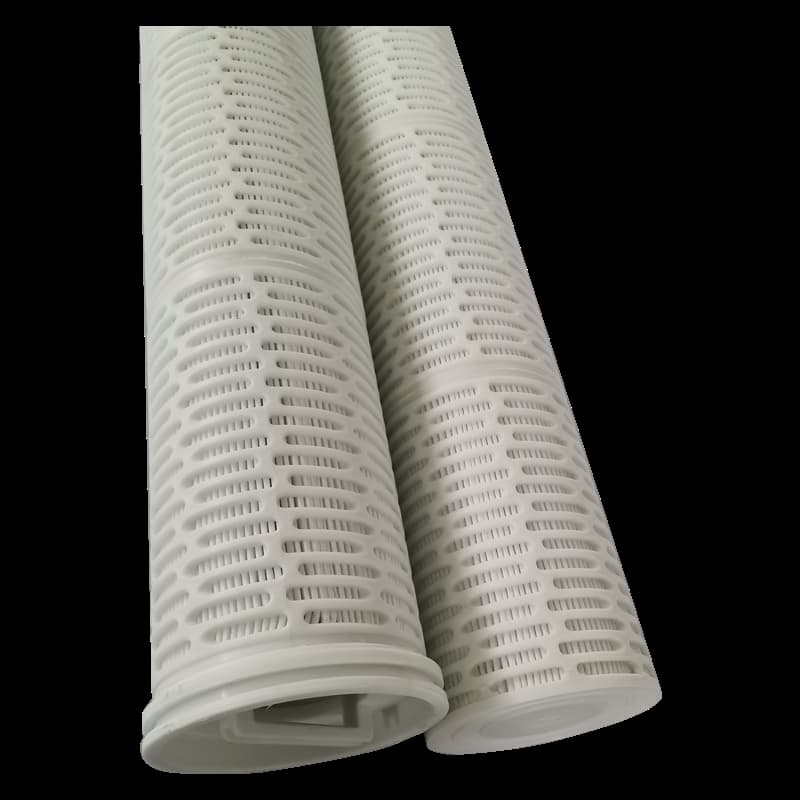

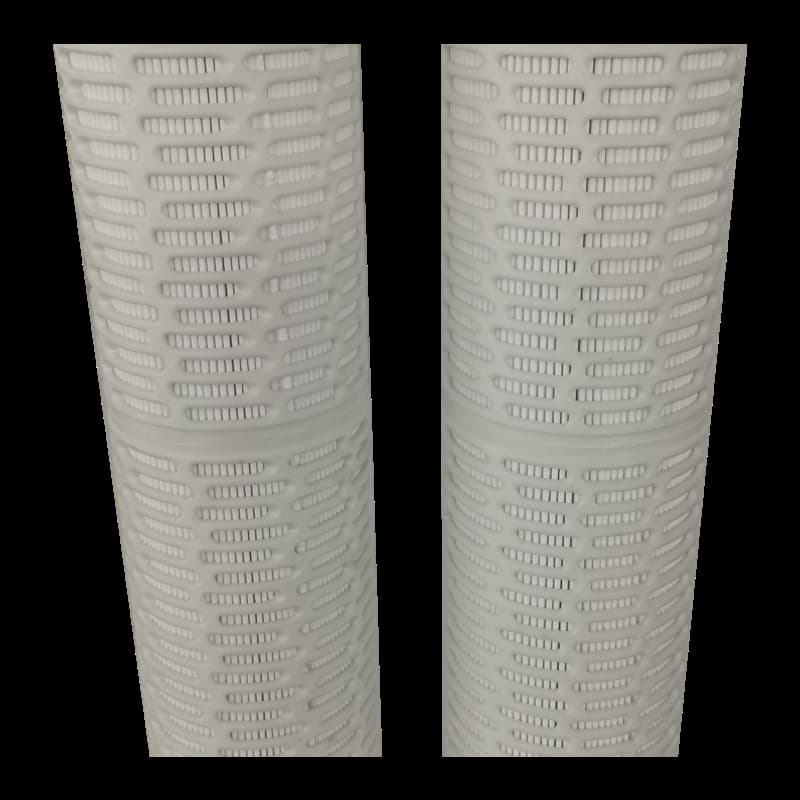

This high flow filter cartridge is designed as an equivalent replacement for Pall filters such as Bienvenue LQ00374-V7. It features a large diameter structure and pleated filtration media to provide high flow capacity and efficient particle removal.

The optimized structure ensures stable operation under high flow conditions, while reducing pressure drop and extending service life. It is suitable for industrial filtration systems requiring reliable performance and high throughput.

Key Features

• High flow capacity with large filtration area

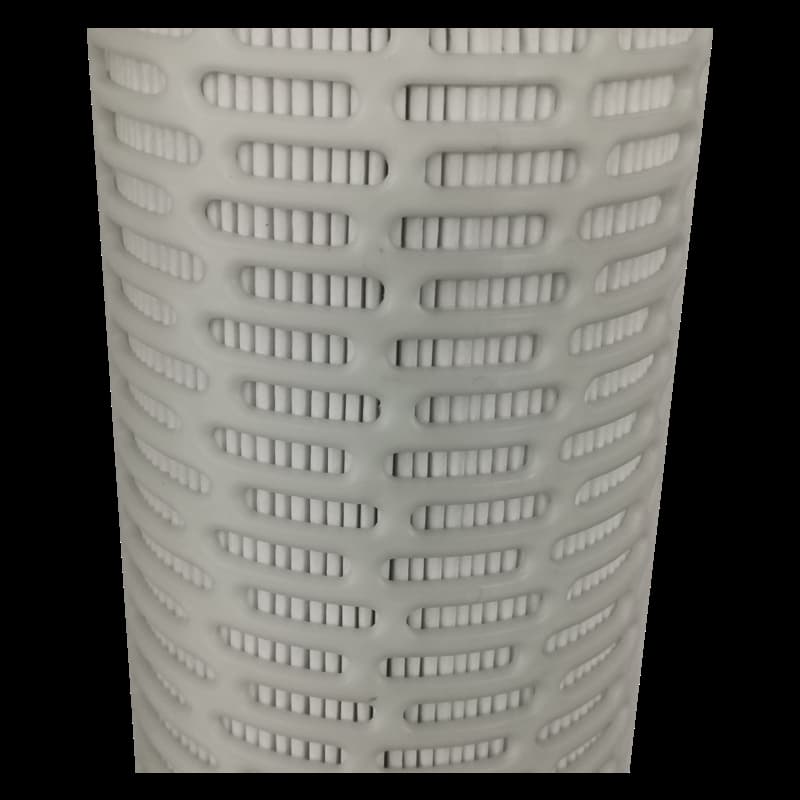

• Pleated structure for enhanced filtration efficiency
• Low pressure drop and long service life
• Strong structural stability under high flow conditions
• Suitable for various industrial filtration applications

Technical Specifications

• Length Options: 20″, 40″, 60″
• Outer Diameter: 152 mm
• Inner Diameter: 89 mm
• Filtration Area: 5.2 m² (20″), 10 m² (40″), 15.3 m² (60″)
• Flow Rate: 50 m³/h (20″), 80 m³/h (40″), 120 m³/h (60″)
• Filtration Direction: Inside to outside
• Filter Media: Polypropylene (PP)
• Support Layer: Polypropylene
• End Caps: Polypropylene
• Maximum Operating Temperature: 80°C (1.0 MPa)
• Maximum Differential Pressure: 0.42 MPa @ 25°C
• Seal Material: Silicone, EPDM, NBR, Fluororubber

Applications

• Industrial process water filtration
• Cooling water and condensate filtration
• Wastewater treatment systems
• Electronics industry water purification
• Chemical and petrochemical filtration
• RO system protection and seawater desalination
