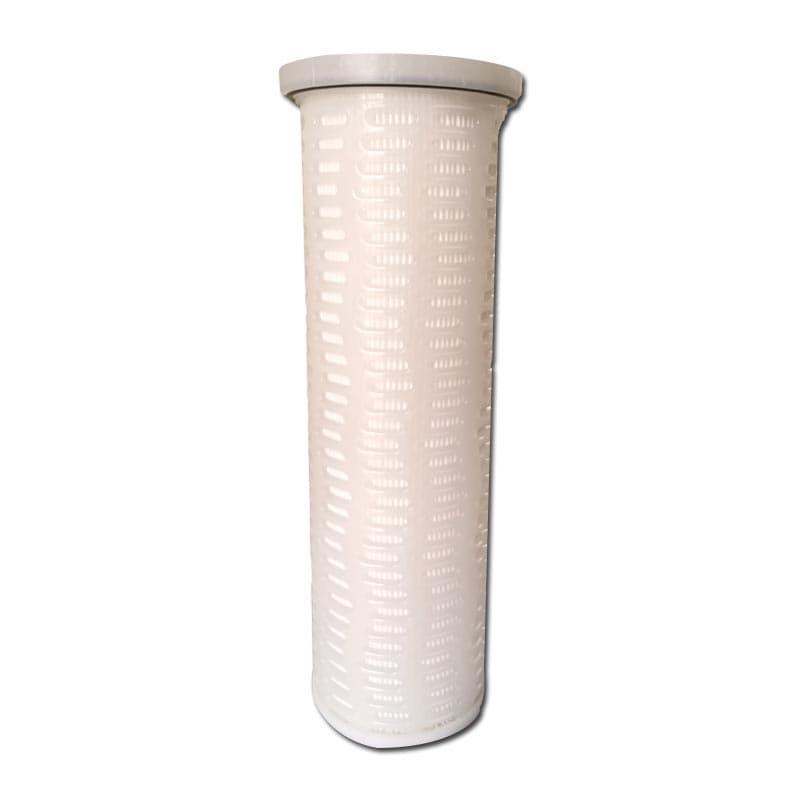

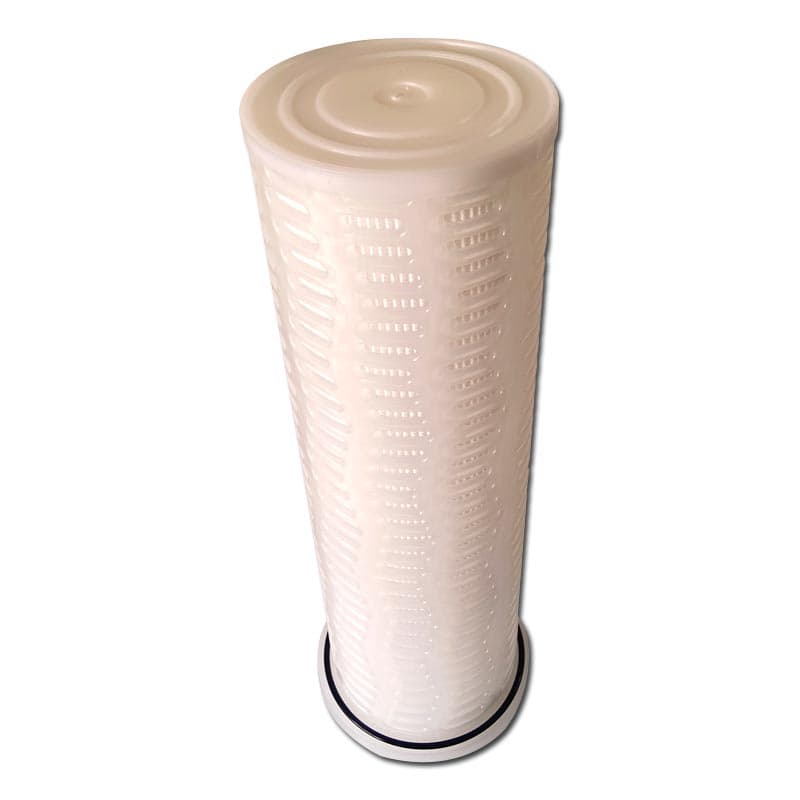

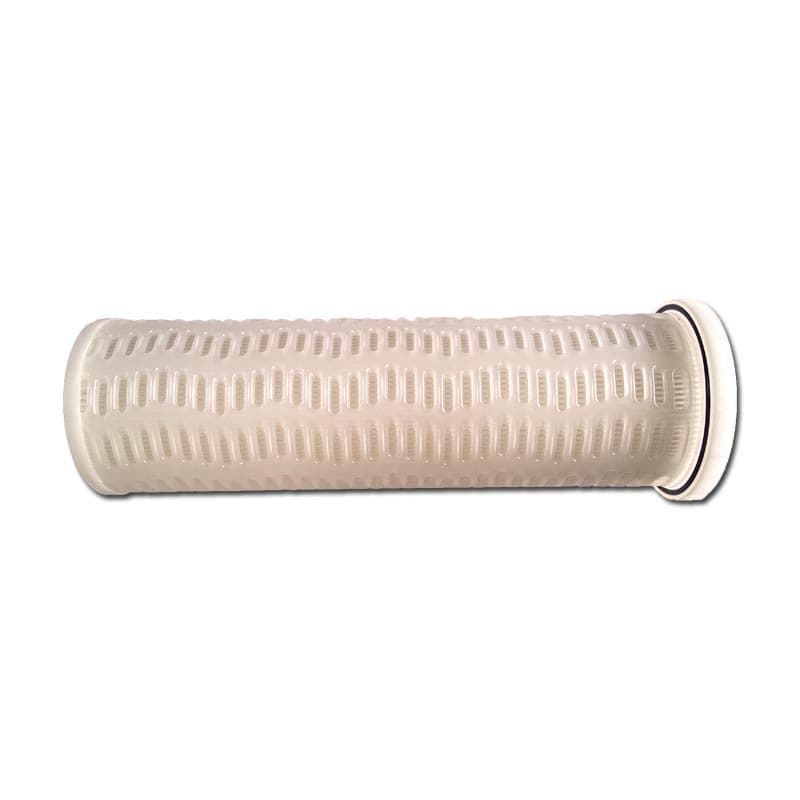

This 20-inch high flow filter cartridge is designed as a replacement for Pall filters. It features a reinforced outer cage structure and is made of multi-layer filtration media combined through pleated technology.

The inside-to-outside filtration design ensures stable operation while effectively removing particles from the fluid. The reinforced structure enhances durability and extends service life, making it suitable for high-flow industrial filtration systems.

Key Features

• Reinforced outer cage for higher strength and durability
• Large filtration area with high flow capacity
• Inside-to-outside flow design
• High dirt holding capacity
• Reduced replacement frequency and lower operating cost
• Available in multiple micron ratings and lengths

Technical Specifications

• Initial Pressure Drop: 0.2 bar
• Recommended Replacement Pressure Drop: 0.24 MPa
• Maximum Differential Pressure: 0.35 MPa
• Maximum Operating Temperature: < 80°C
• Filtration Direction: Inside to outside
• Filtration Rating: 1–100 μm
• Filter Media: Polypropylene (PP)
• End Caps: Polypropylene (PP)
• Outer Cage: Reinforced Structure (Stainless Steel / PP)
• Seal Material: EPDM, NBR, Silicone

Applications

• Industrial process fluids and water treatment
• Cooling water and condensate filtration
• Wastewater treatment systems
• Electronics industry water purification
• Chemical and petrochemical filtration
• RO system protection and seawater desalination
• Biological and industrial water filtration
