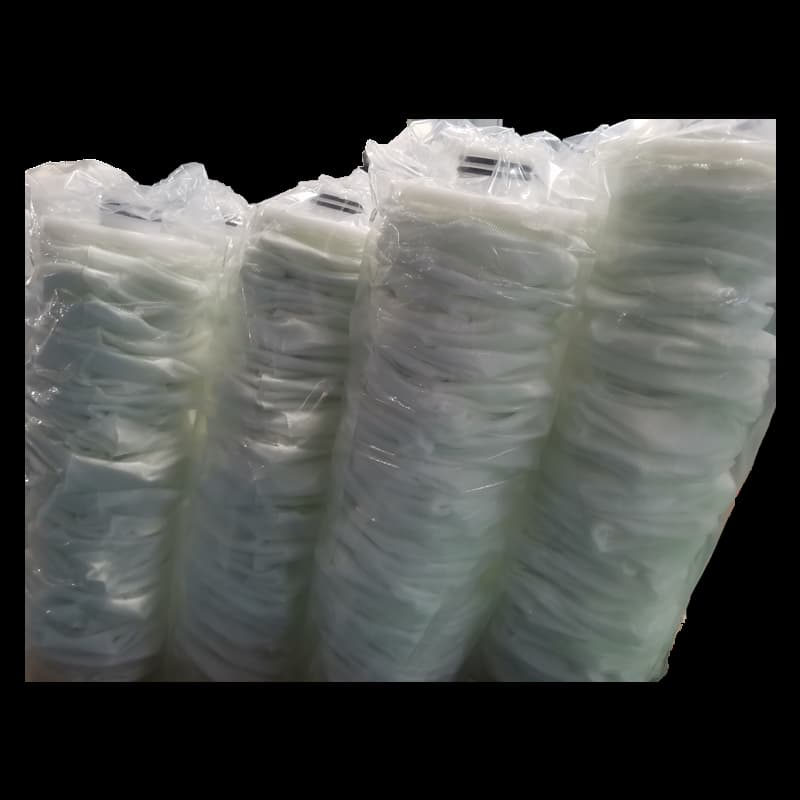

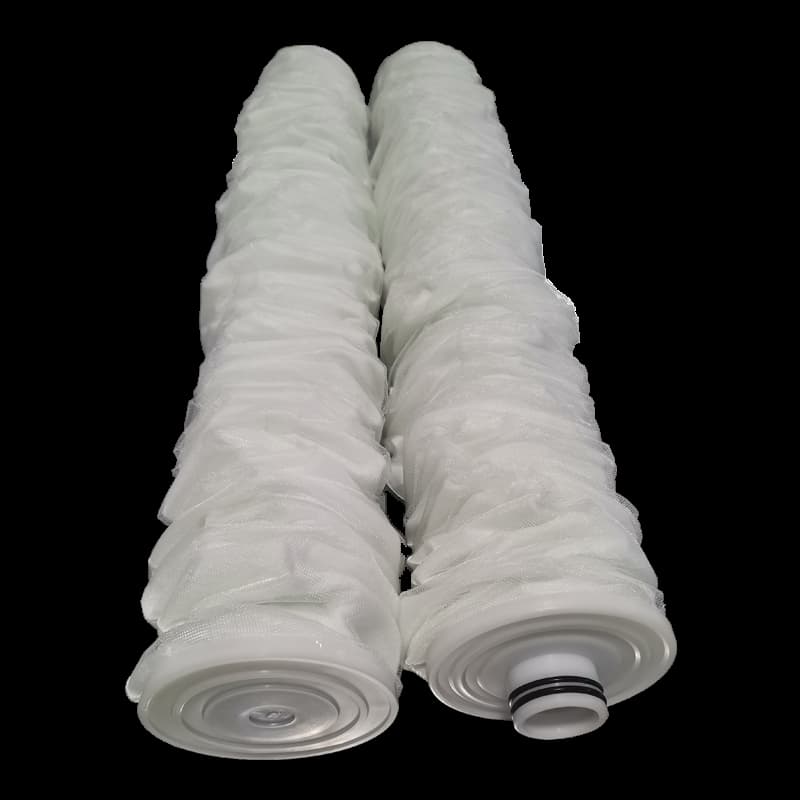

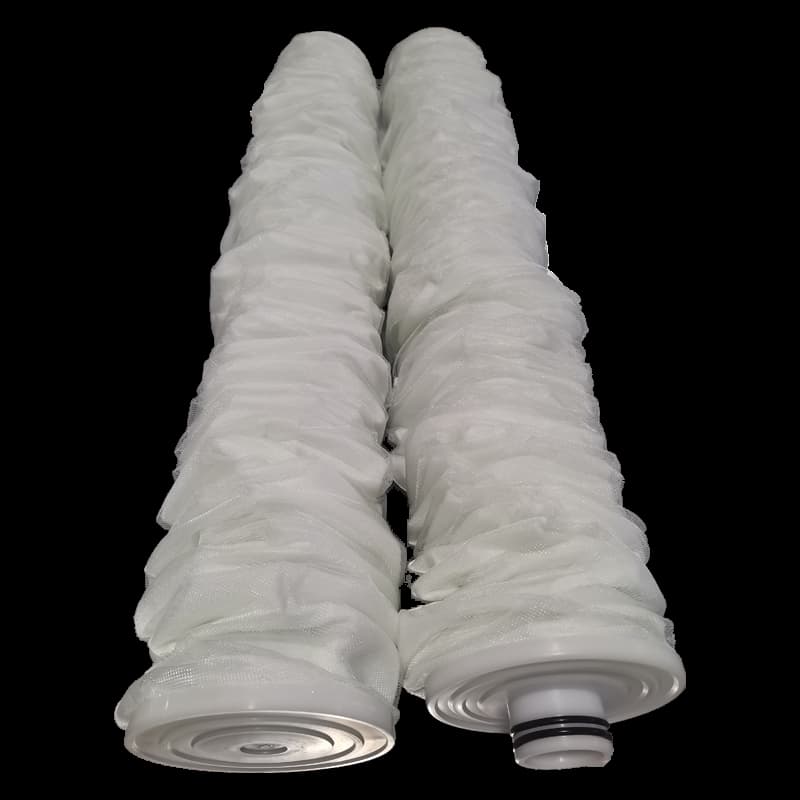

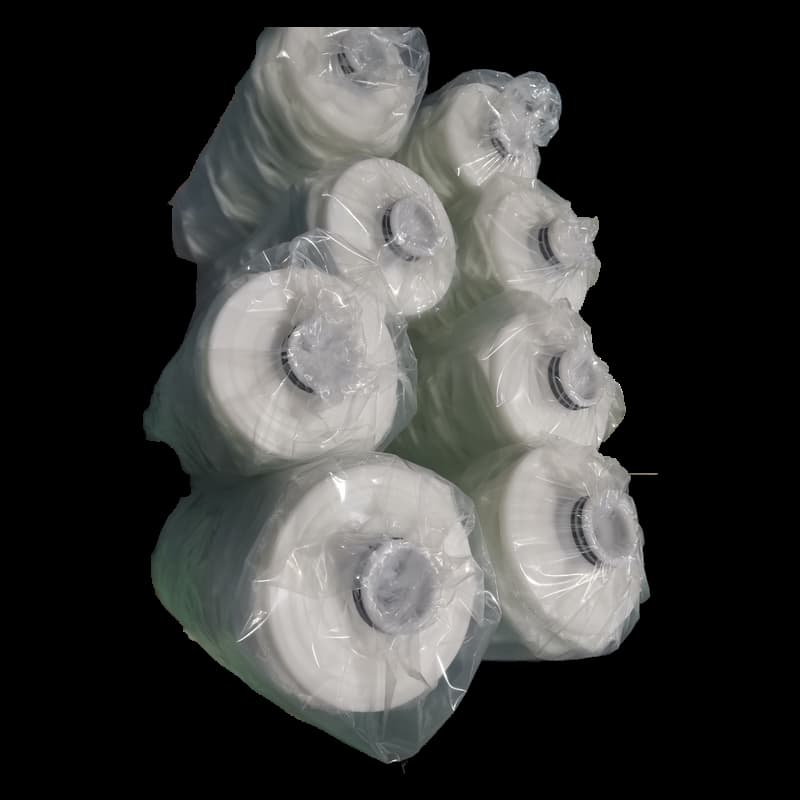

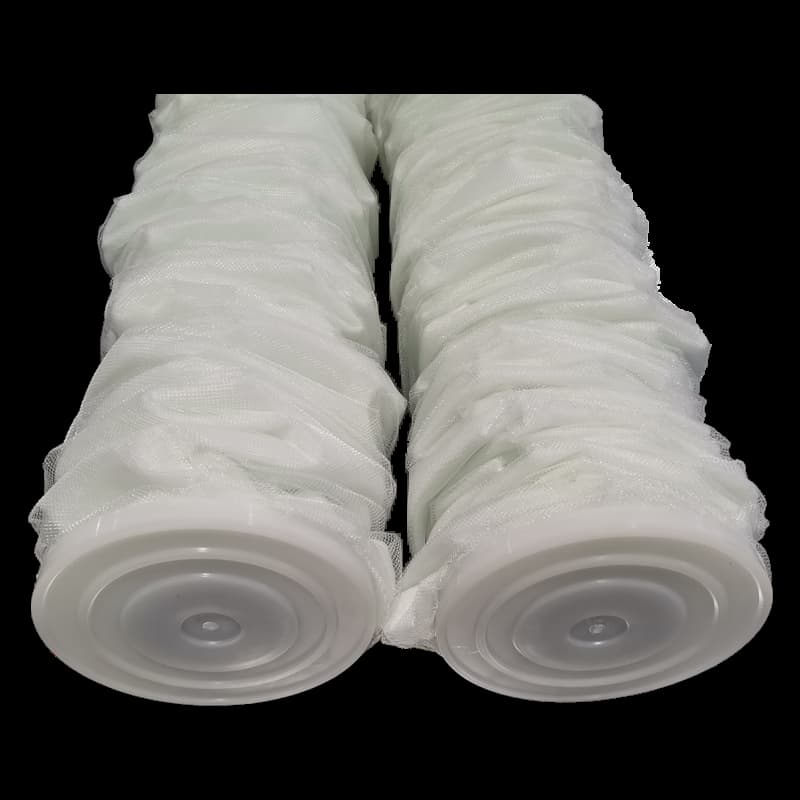

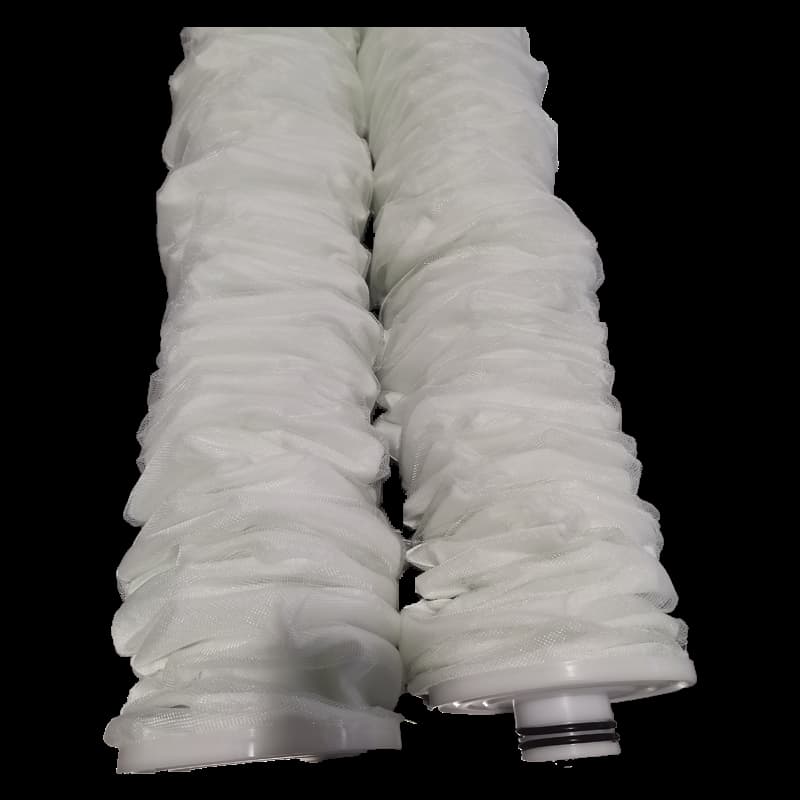

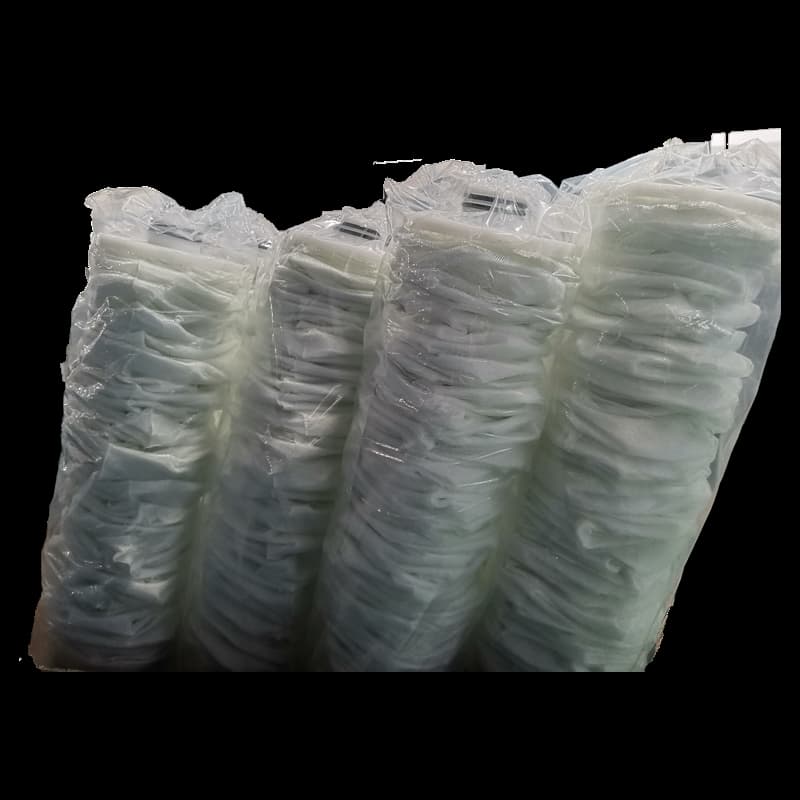

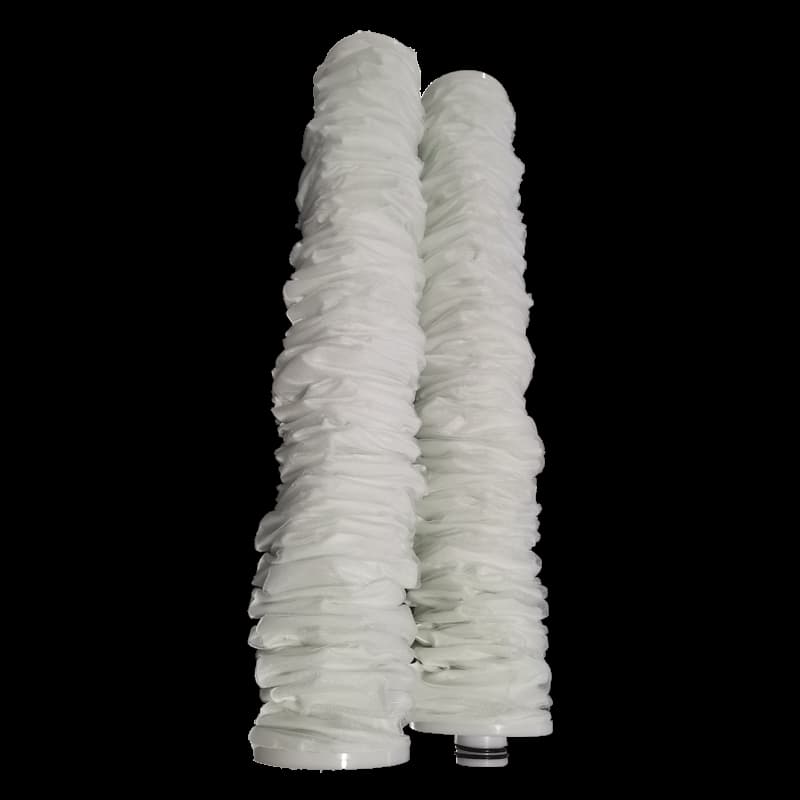

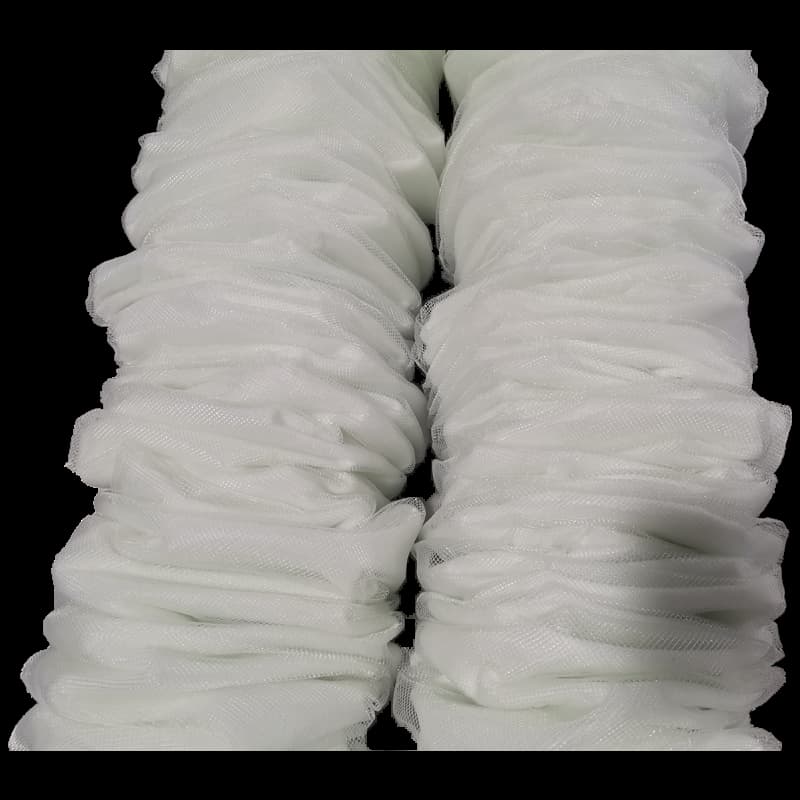

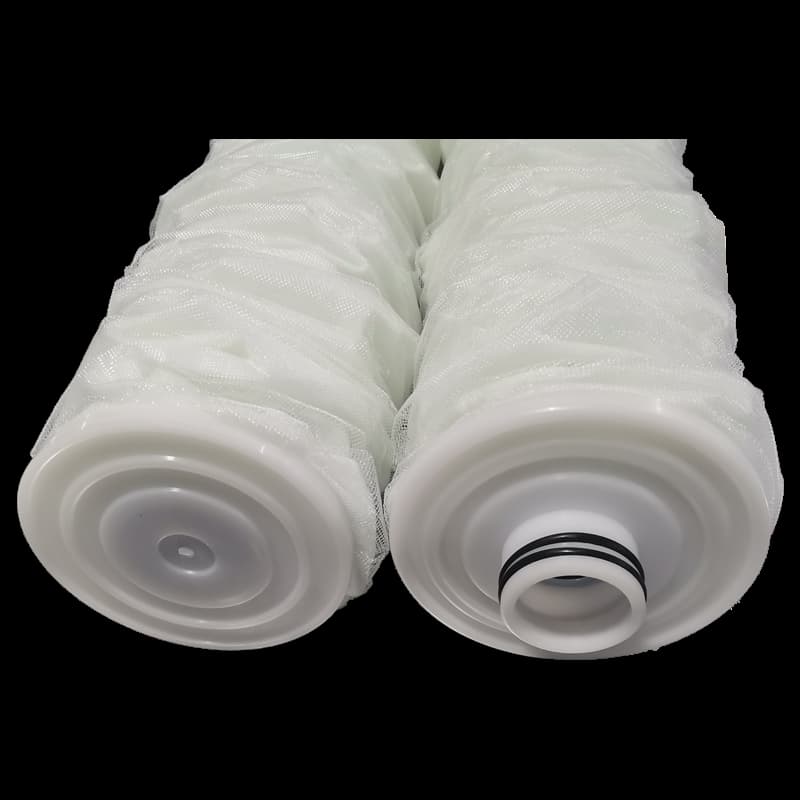

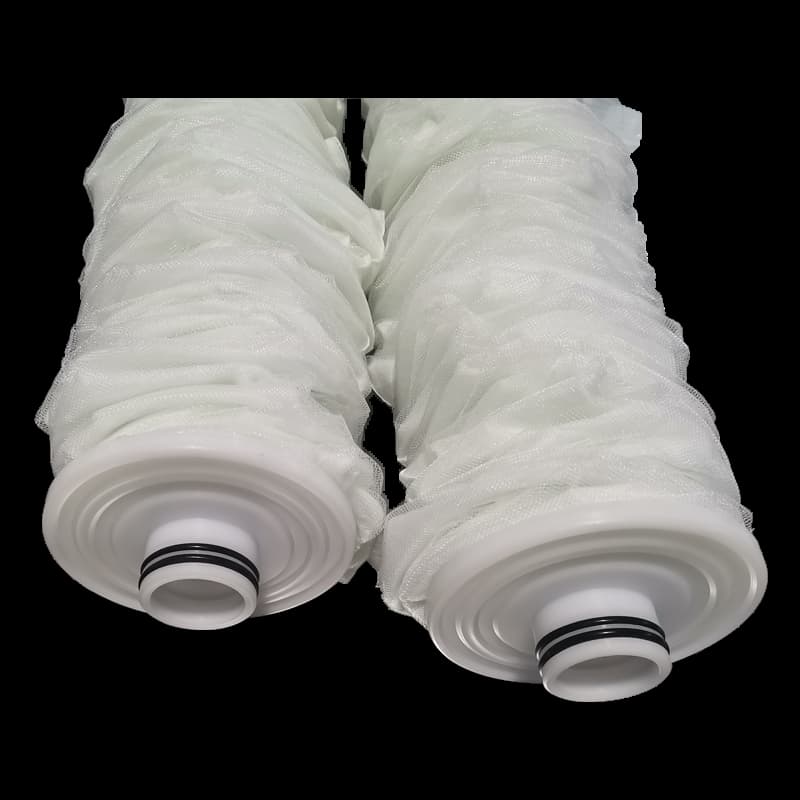

The CHF-PM series high flow pleated filter cartridge is designed as a replacement for 3M high flow filter elements. It features a large filtration area and a pleated structure that significantly increases flow rate while maintaining low pressure drop.

The cartridge adopts advanced filtration materials and a multi-layer gradient pore structure, ensuring efficient particle retention and extended service life. It is suitable for high-flow industrial filtration systems and helps reduce the number of filter cartridges required.

Key Features

• High flow rate with large filtration area
• Low pressure drop and long service life
• Multi-layer gradient pore structure for efficient filtration
• Strong dirt holding capacity
• Reduces cartridge replacement frequency and operating costs

Technical Specifications

• Length: 10″, 20″, 30″, 40″, 60″
• Filtration Type: Outside-to-inside flow
• Filter Media: Polypropylene (PP)
• Inner Core: Polypropylene (PP)
• Outer Cage: Polypropylene (PP)

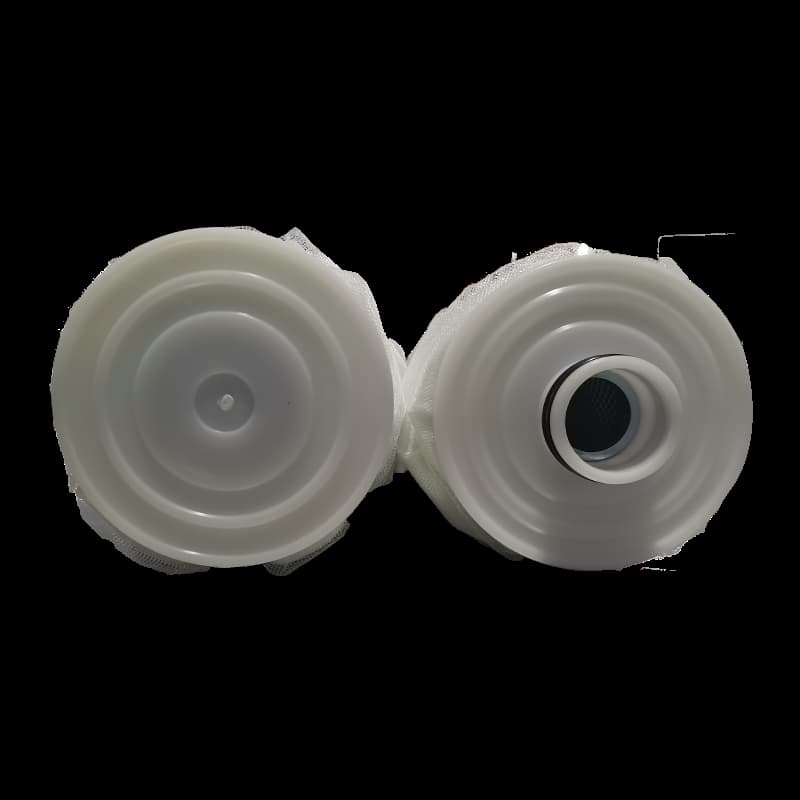

• End Caps: Polypropylene (PP)
• Seal Material: EPDM, NBR, Silicone, Viton
• Maximum Operating Temperature: 80°C
• Maximum Differential Pressure: 3.0 bar @ 25°C

Applications

• Industrial water filtration
• Cooling water systems
• RO pre-filtration
• Seawater desalination
• General industrial liquid filtration
