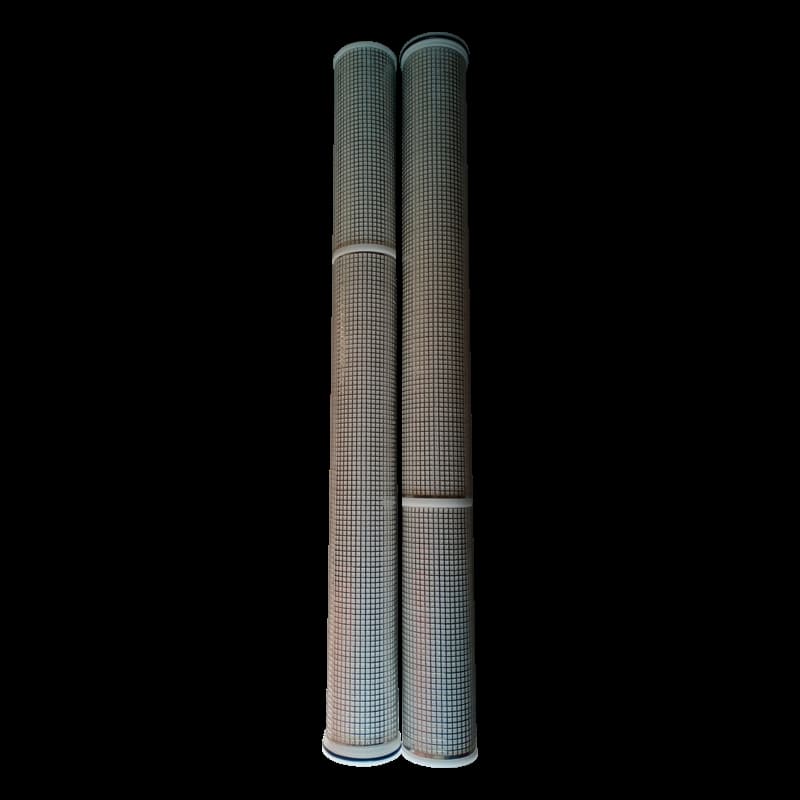

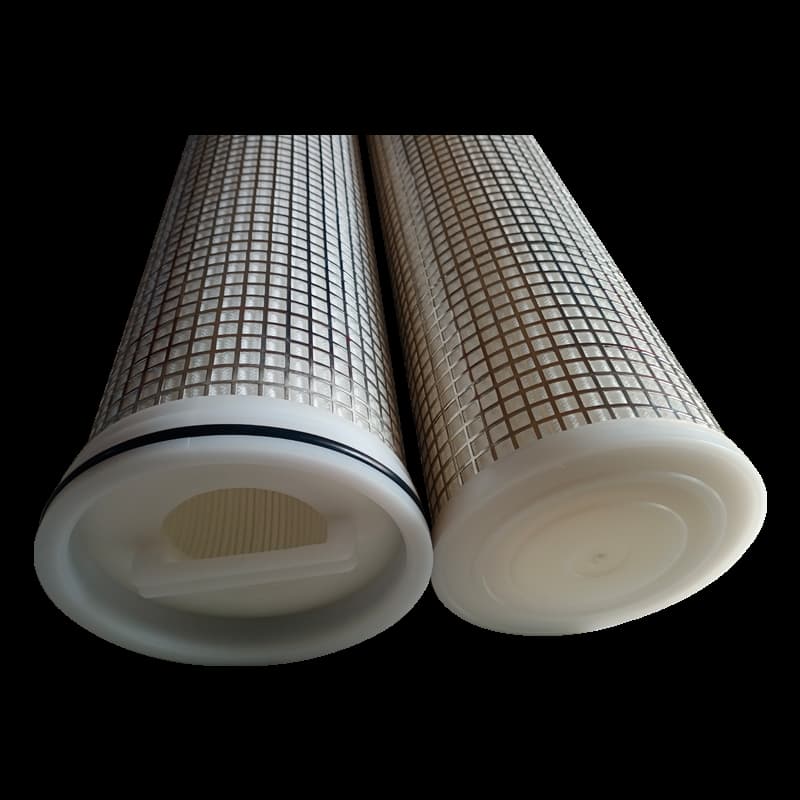

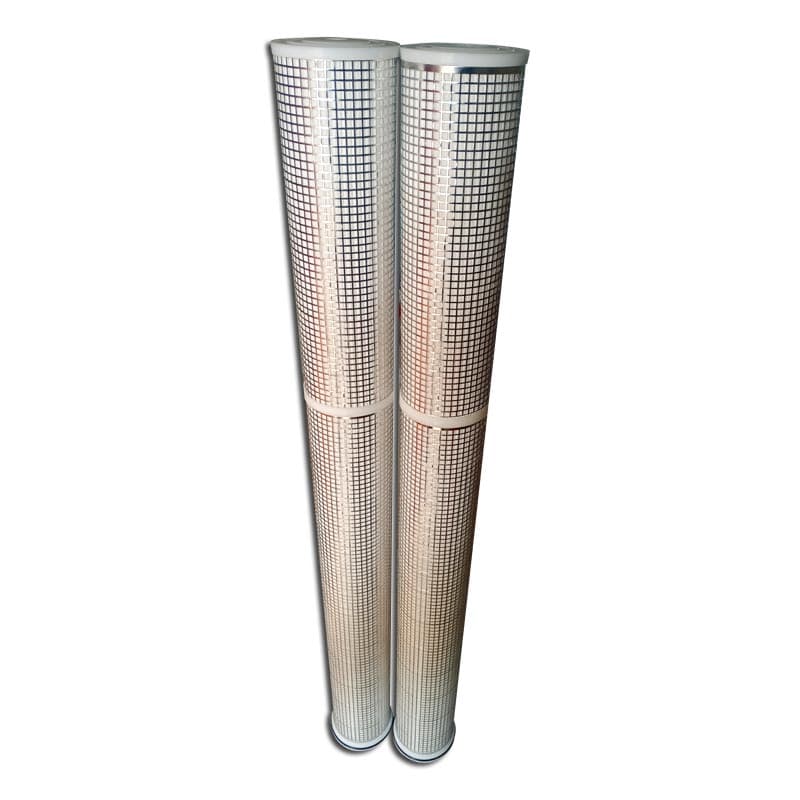

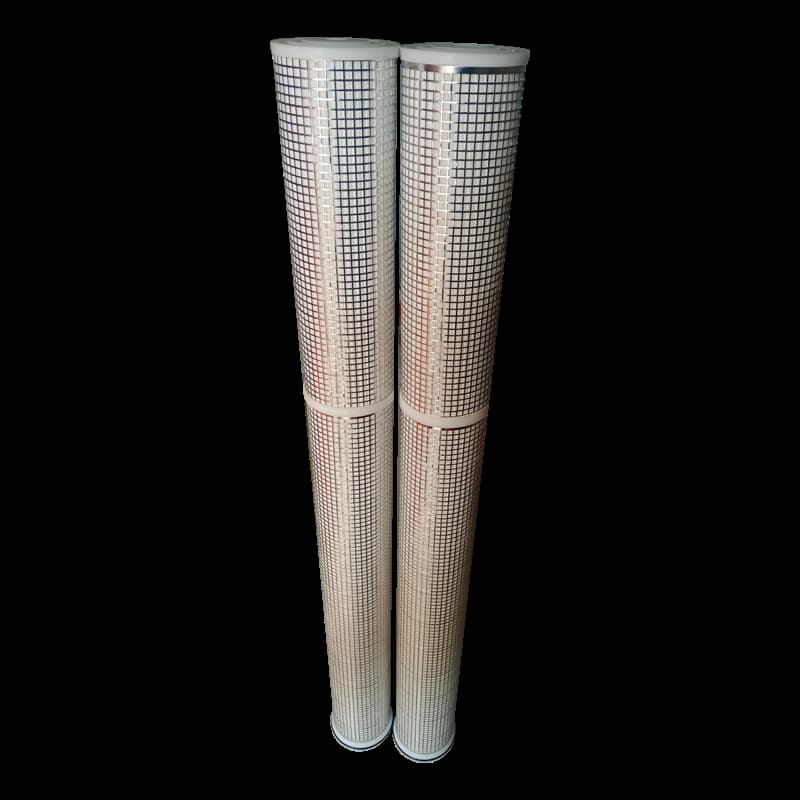

This 60-inch high flow filter cartridge is designed as a replacement for Pall filters. It features a stainless steel outer structure combined with high-performance filtration media, providing excellent mechanical strength and durability.

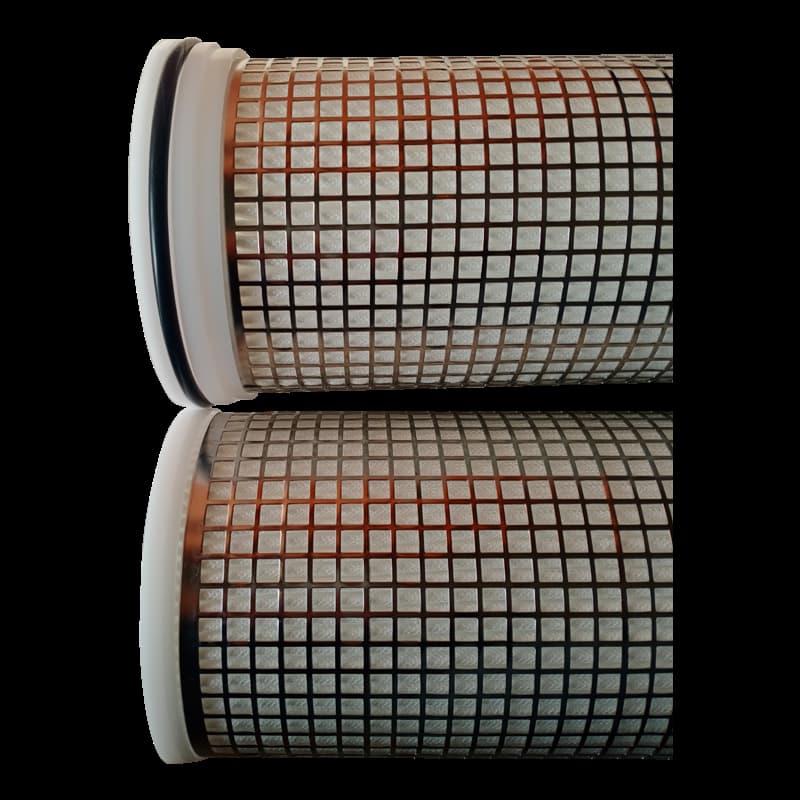

The cartridge adopts a multi-layer filtration structure with high flow capacity and low initial pressure drop. The stainless steel outer cage effectively protects the filter media and ensures stable performance in harsh industrial environments.
Key Features
- Stainless steel outer cage for enhanced strength and durability
- High flow rate with low pressure drop
- Multi-layer filtration structure for improved efficiency
- Strong resistance to deformation and external impact
- Suitable for harsh industrial environments
- Extended service life and stable performance
Technical Specifications
- Outer Diameter: 160 mm
- Length: 1524 mm (60 inch)
- Filtration Direction: Inside to outside
- Filter Media: Polypropylene (PP)
- Inner Core: Polypropylene (PP)
- Outer Cage: Stainless Steel Perforated Structure

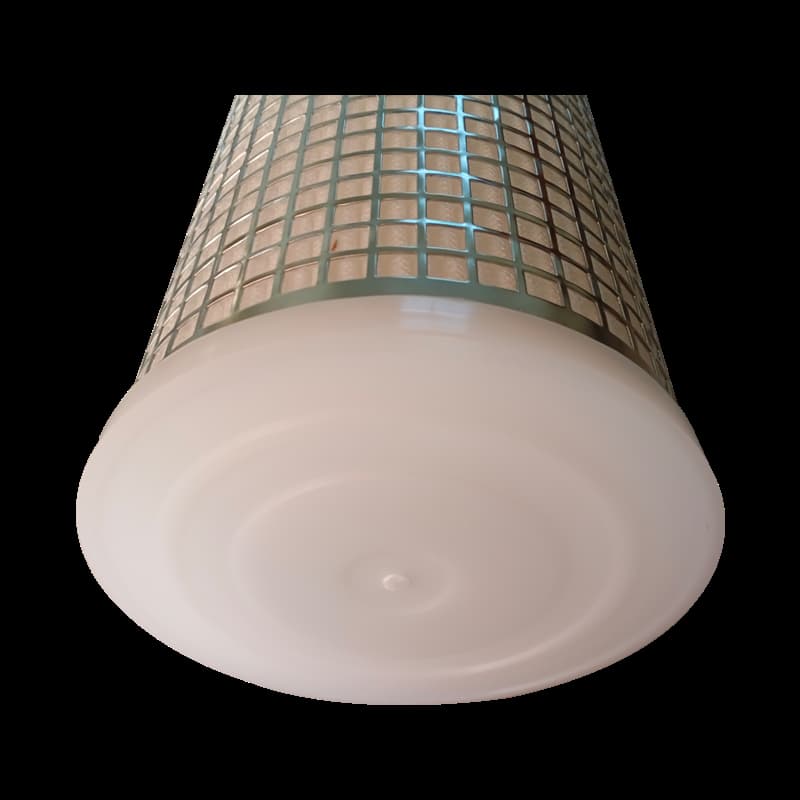

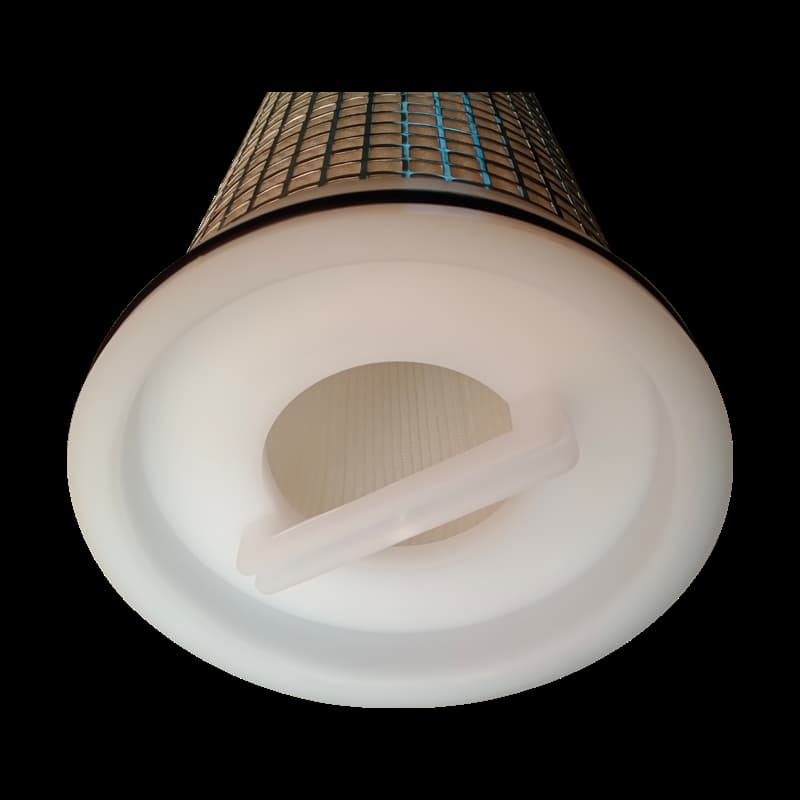

- End Caps: Polypropylene (PP)
- Seal Material: EPDM, NBR, Silicone, Viton
- Recommended Replacement Pressure Drop: 2 Bar
- Maximum Operating Temperature: 80°C
- Maximum Differential Pressure: 3.0 Bar @ 20°C
Applications
- Boiler make-up water filtration
- Industrial water pre-filtration
- Seawater desalination systems
- Pure water and ultrapure water systems
- Wastewater treatment in chemical industries
- Municipal water treatment
